Our Main Products
Machines with exceptional speed
and productivity
STEEL WIRE MACHINE
Carbon Steel Wire Rope, Stainless Steal Wire Rope
1. Tubular Stranding Machine
2. Rigid Stranding machine
3. Planetary Stranding Machine
4. Dry Drawing Machine
5. Zinc Galvanizing Line

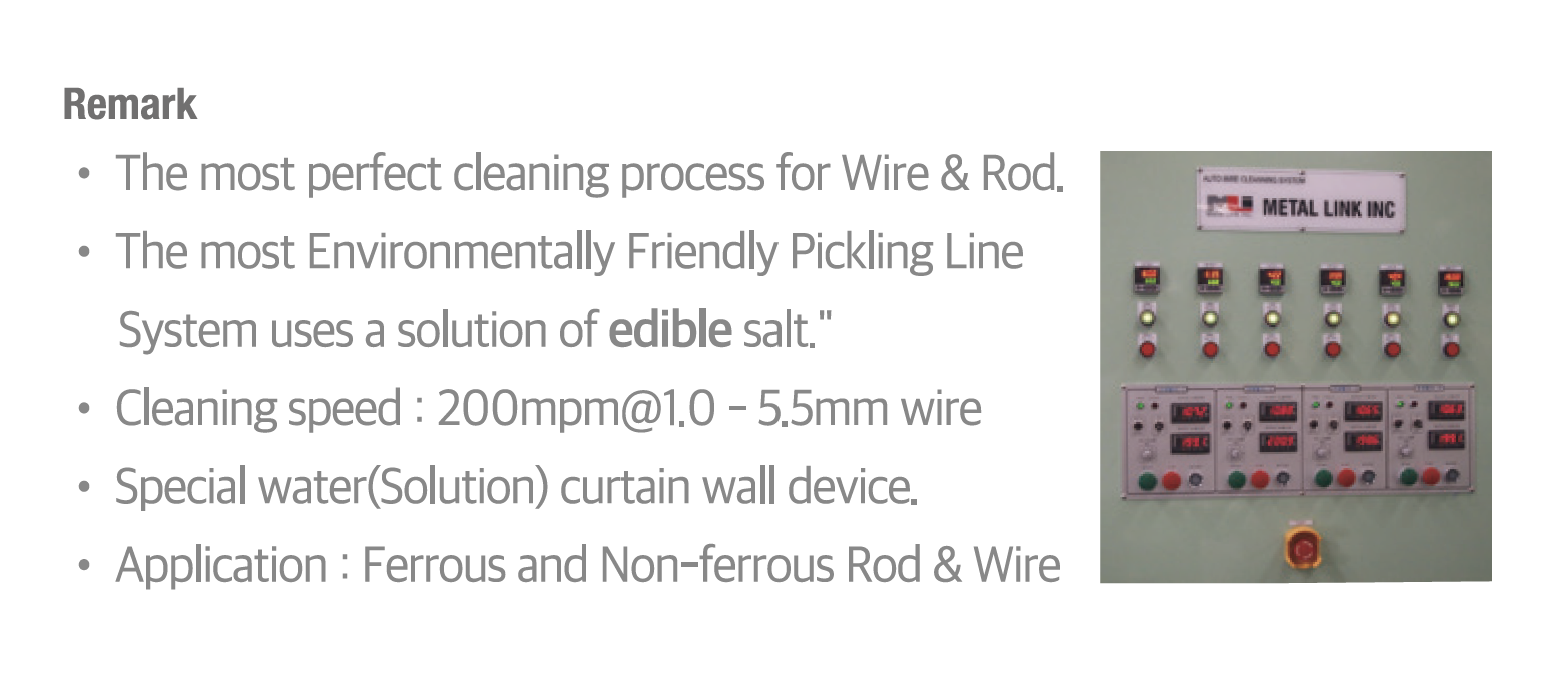

6. Electrolysis Rod & Wire Cleaning System
7. Pickling Line
CABLE MACHINE
Copper & Aluminum Cable (Power Line)
8. Stranding Machine
9. Laying-up Machine

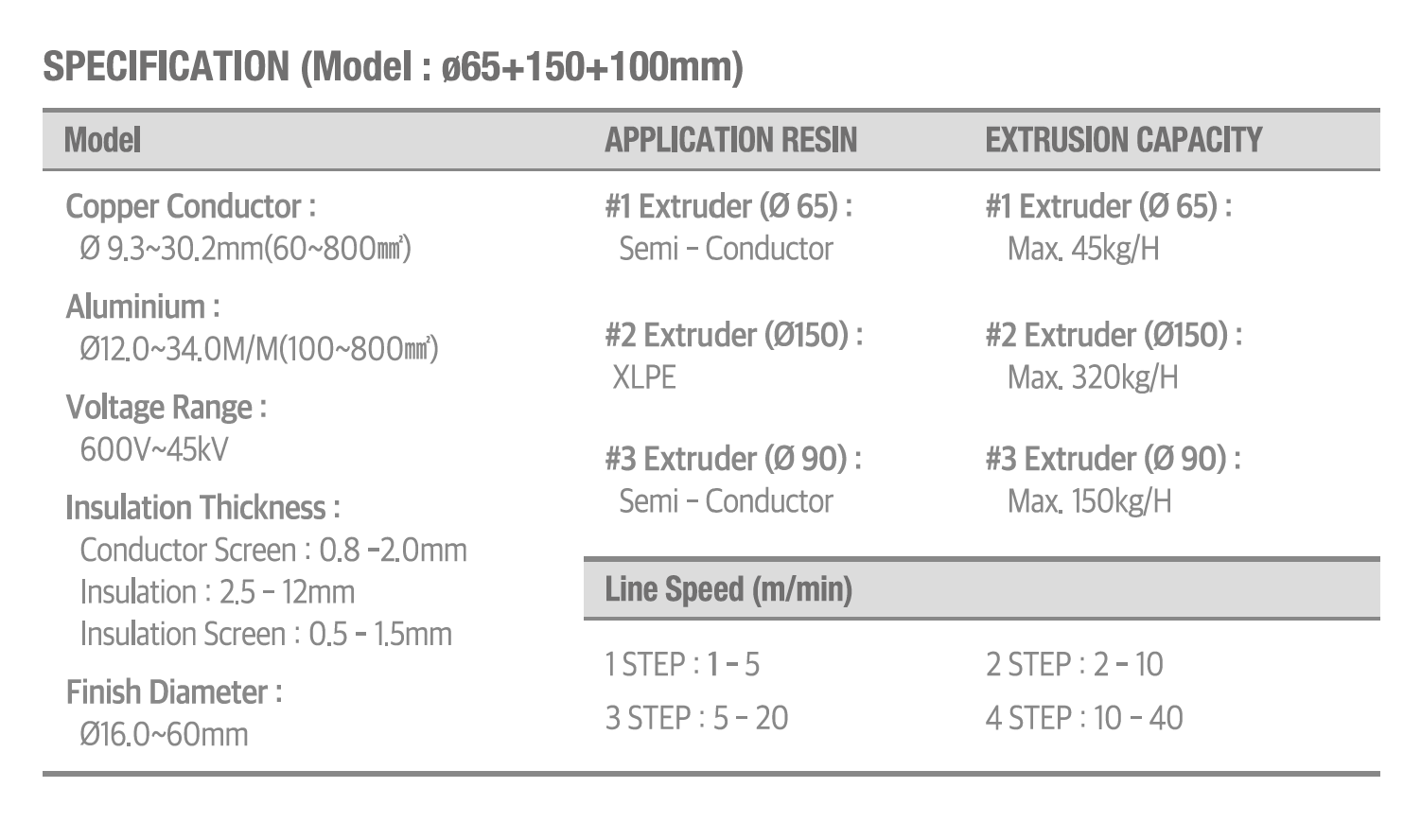

10. Triple Dry CCV Machine
11. Drum Twist Machine
12. Single Twist Machine
13. Double Twist Machine
14. Rod Breakdown Machine
Precision Engineering for Superior Machines.
Material Innovation, Wire Perfection.
Advanced Processes, Reliable Connections.
Engineering the Future of Cables and Wires.
From Material Science to High-Performance Wires.

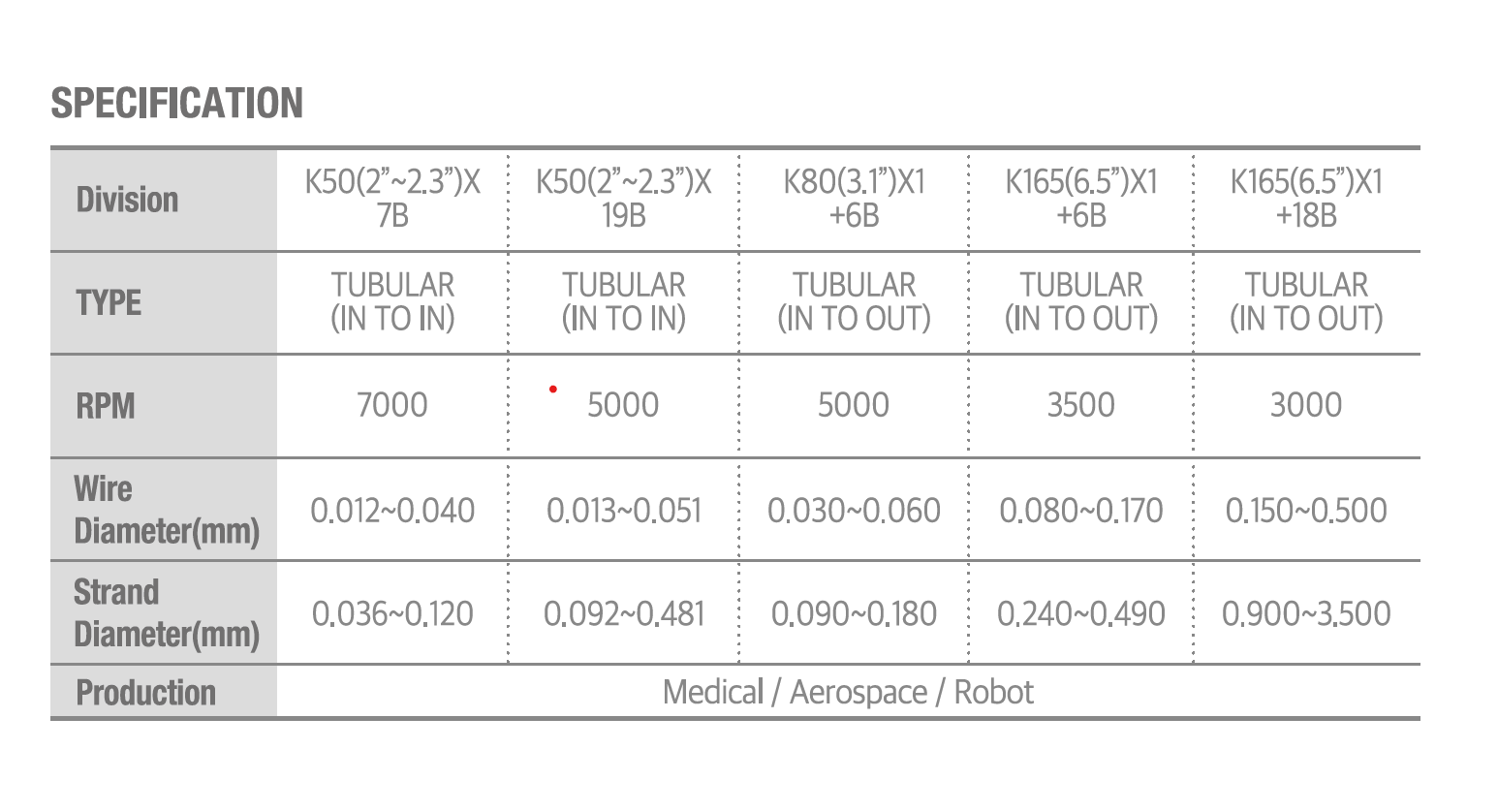

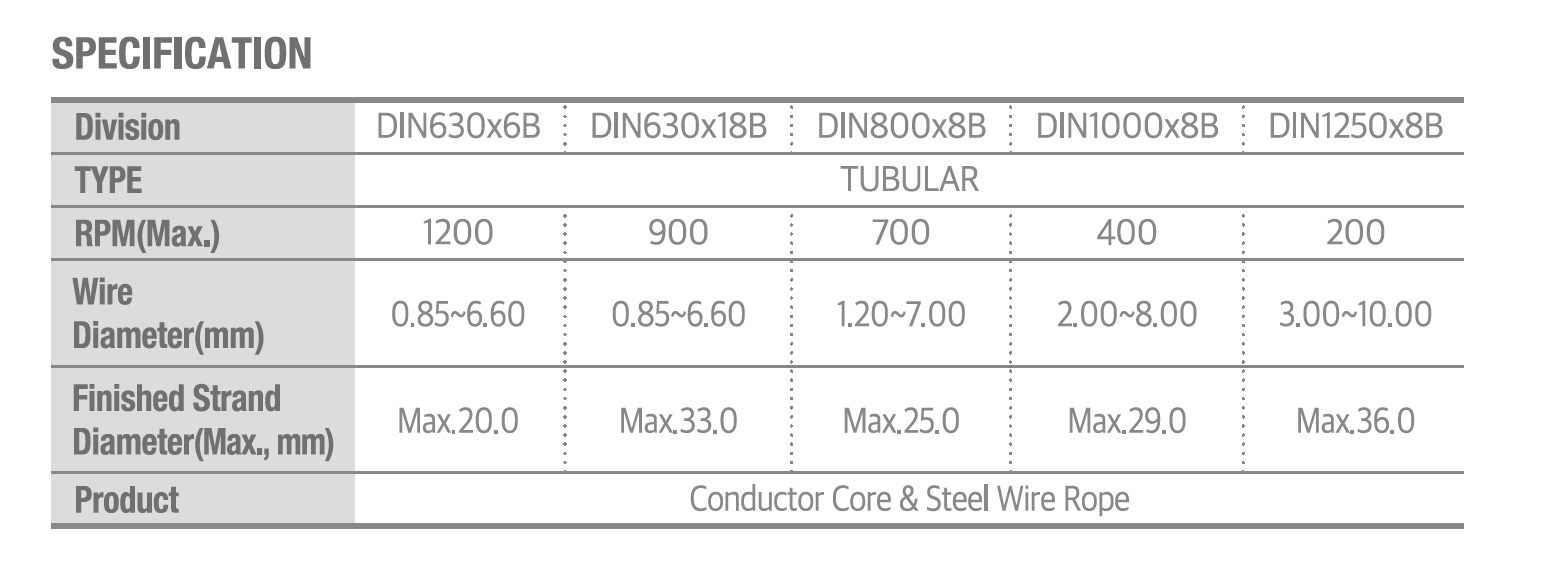

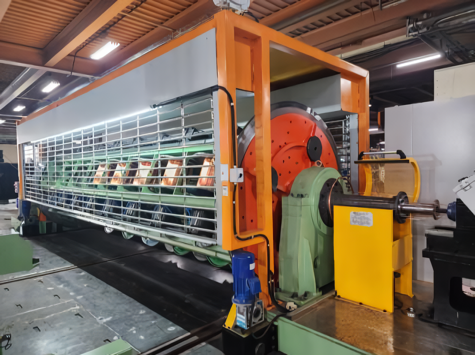

The Tubular Strander is a well-known and useful stranding machine
used to make High & Low Carbon Steel Wire Rope,
Stainless Steel Wire Rope, Copper & Aluminum Cable,
and PC Strands.
The machine is driven by 36 variable steps drive gear box,
with dual active, dual hauling capstan.
The wire pay-off tension is controlled pneumatically
by a Remote System to guarantee constant tension
on both loaded and empty bobbins.
Compare features
| Feature | SKIP Strander | m-SKIP Strander | TUBULAR Strander |
|---|---|---|---|
| RPM | 1,100 | 1600 at 85dB | 1,000 |
| Quality | Good | Excellent for stranding | Excellent |
| Electronic Power at same RP | 160kW | 160kW | 130kW |
| Installation Space (Compared to Tubular Strander) | normal (Width : 100%, Length : 90%) | more compact (Width : 95%, Length : 90%) | 100% |
| Vibration | Quite Higher(120%) | Lower(95%) | 100% |
| Maintenance Cost | High(130%) | Low(90%) | 100% |
| Productivity & Efficiency | Good | Very Exellent | 100% |
The machine is used for Stranding high carbon steel or
stainless steel wires with back-twist,

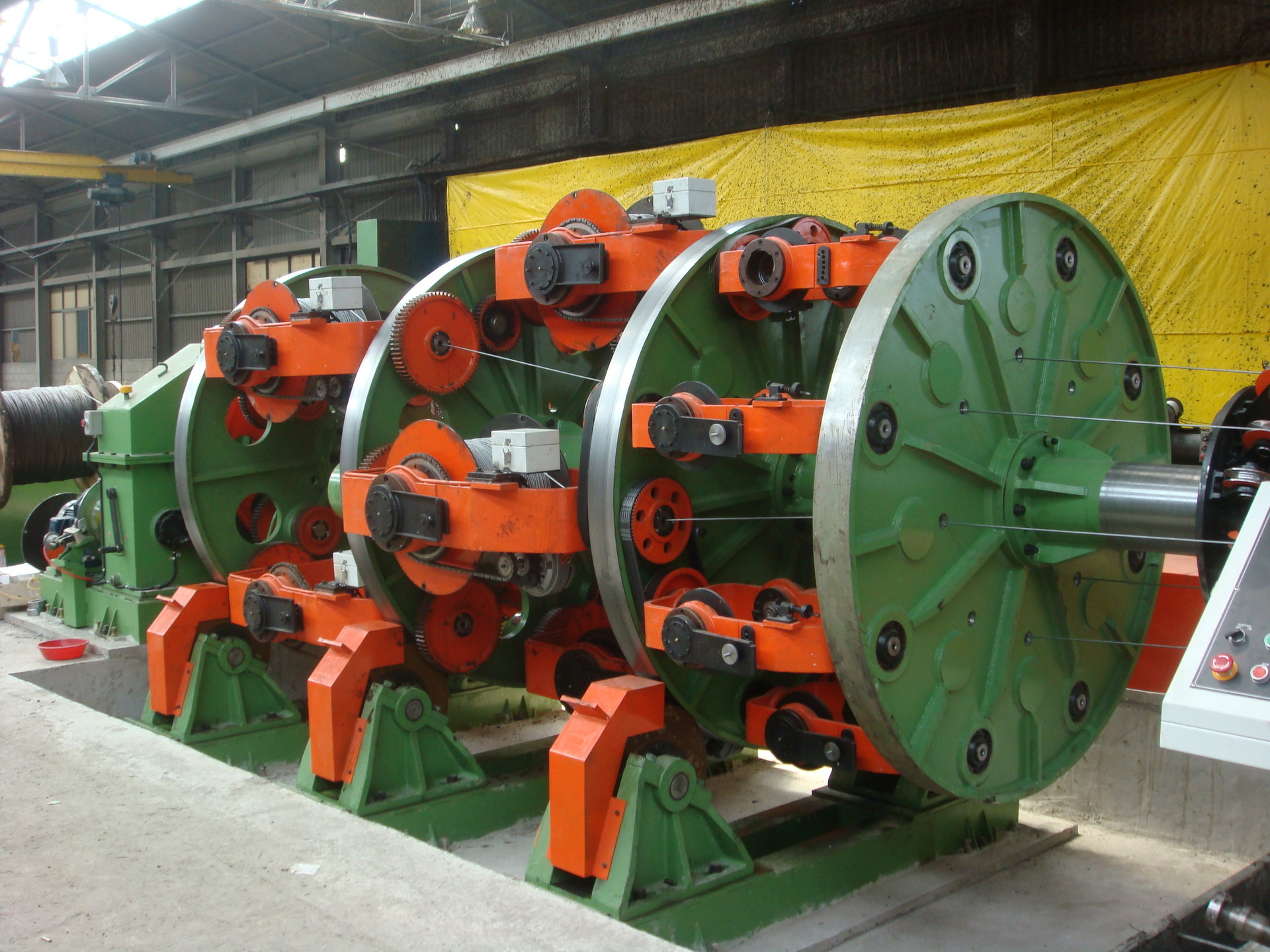

or for Compacting & Stranding Round or Sector Conductors.
(In-Out and Out-In)
Pay-offs & Take-ups are designed for Low, Medium, and High Carbon Steels, as well as Stainless Steel Wire, Copper, Aluminum cable, and PC strands.

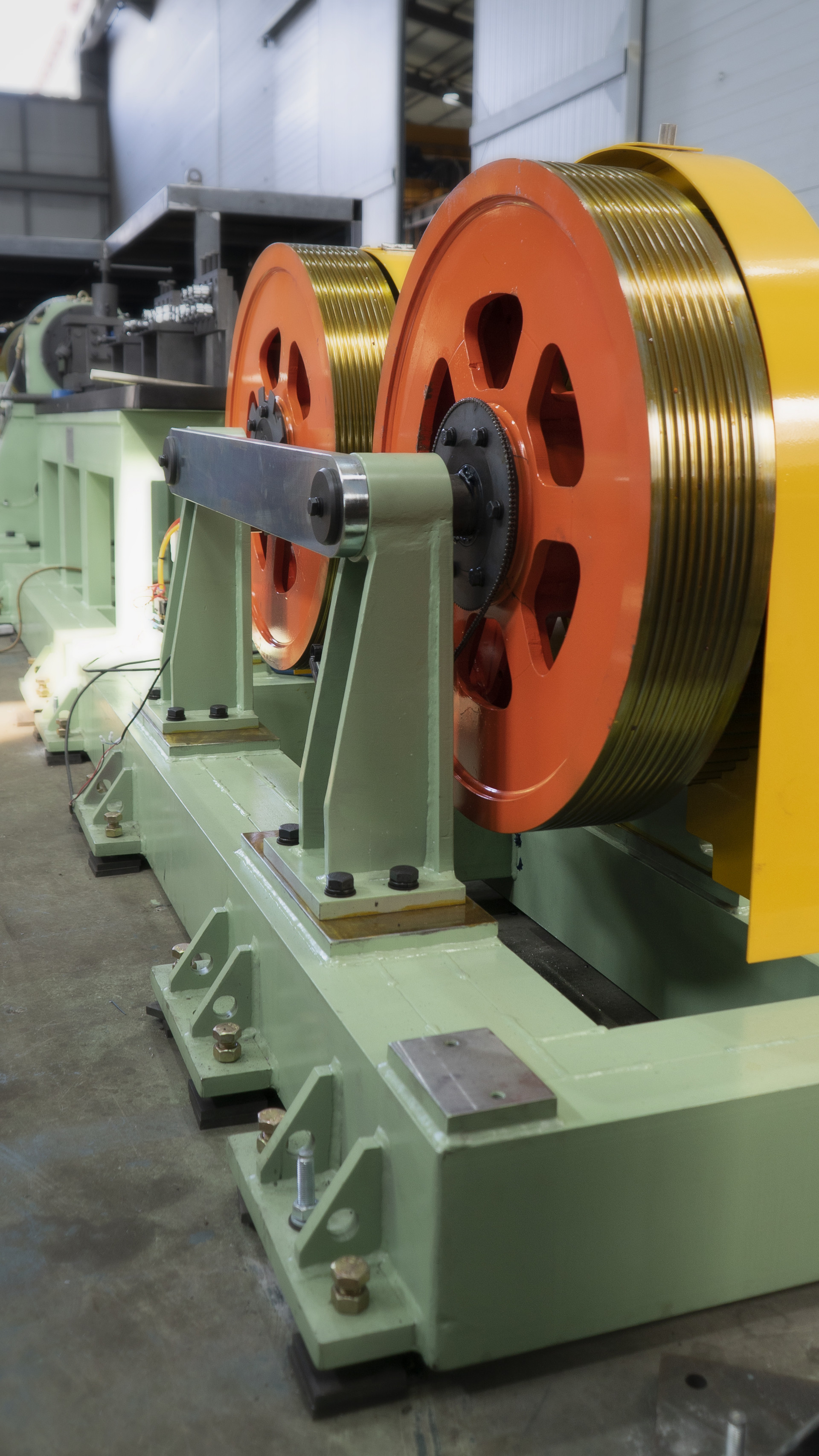

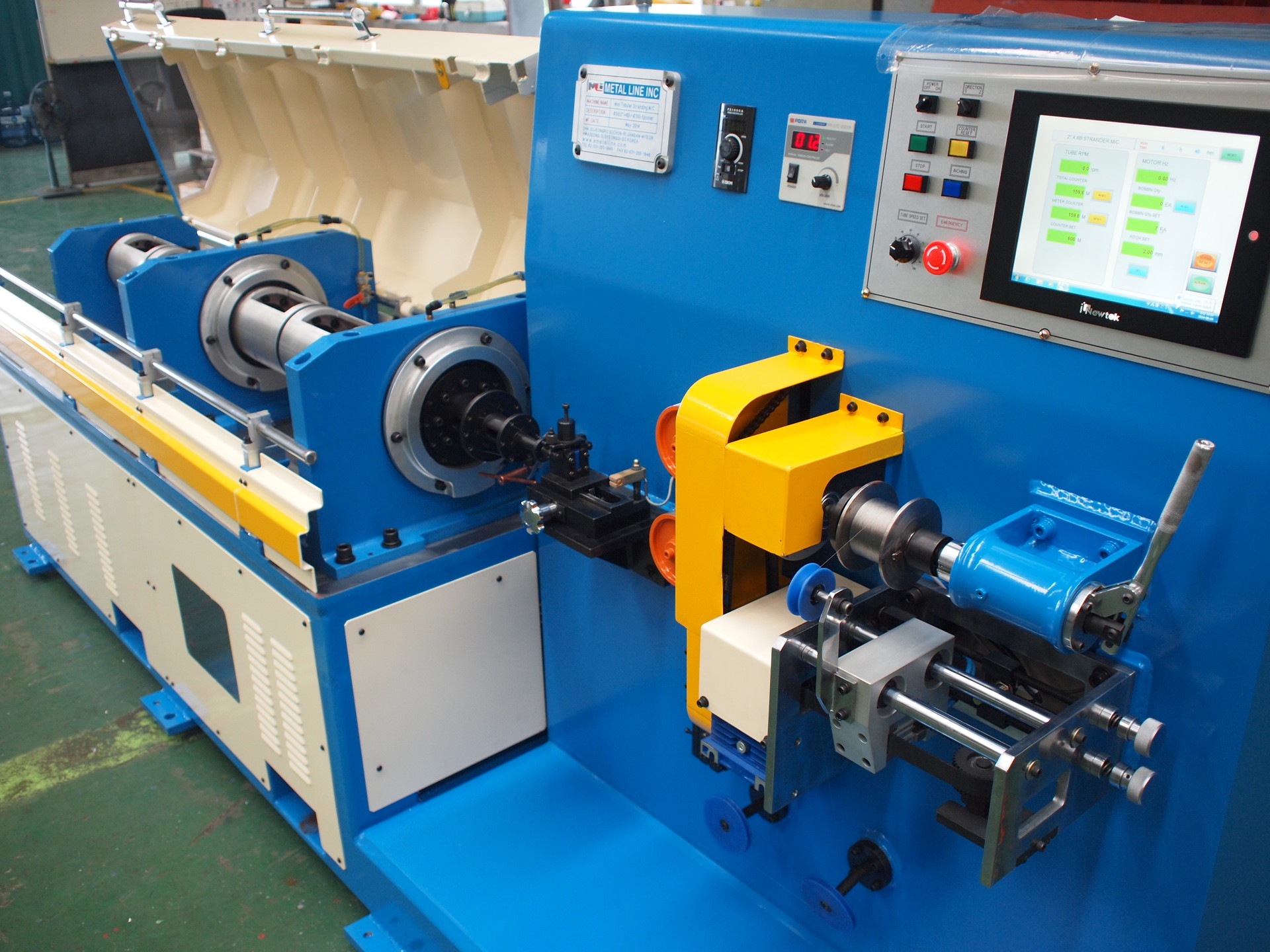

Caterpillars & Capstans are most suitably designed for use in Extrusion, Taping, or Laying Up of Lines.

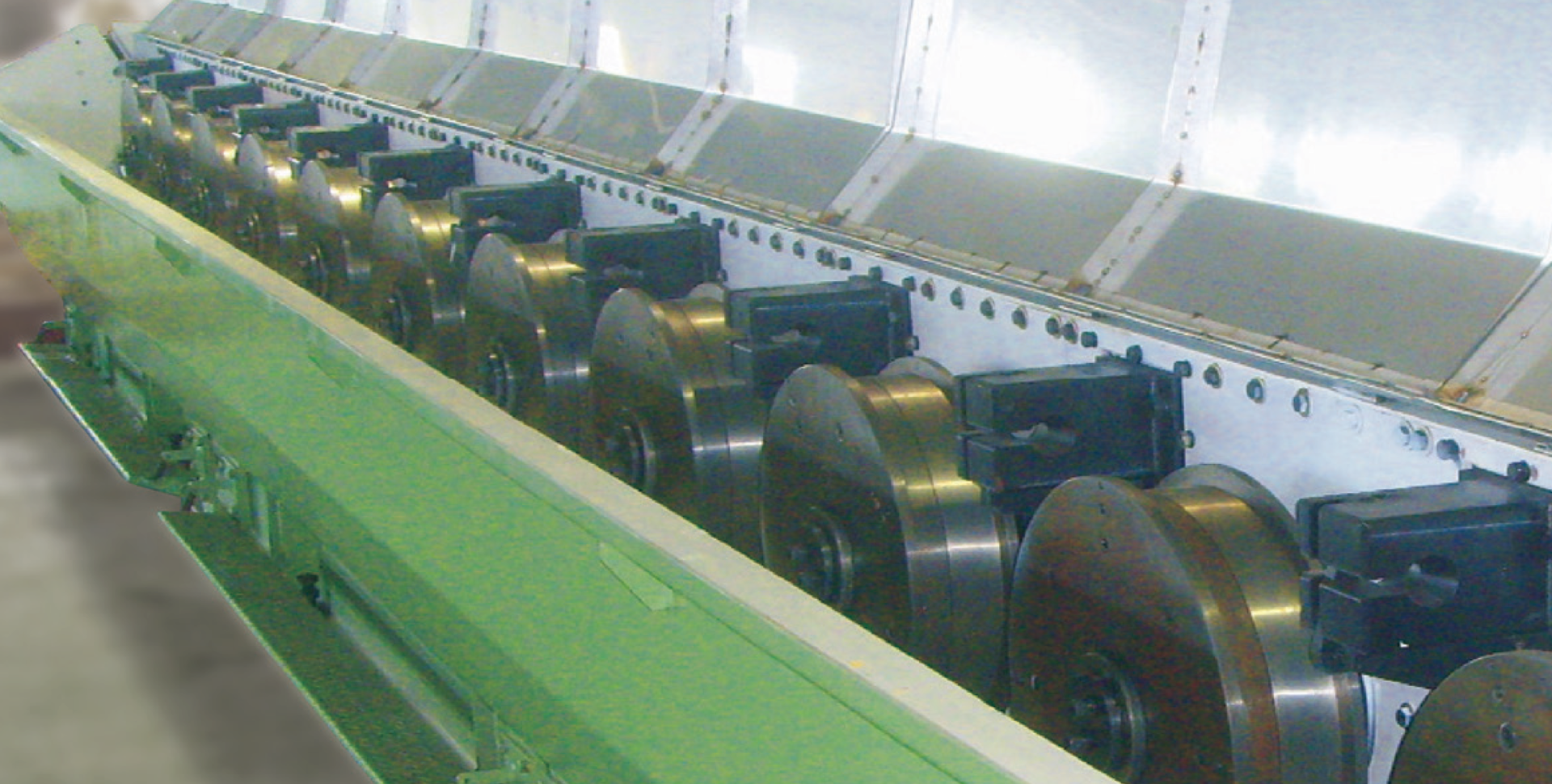

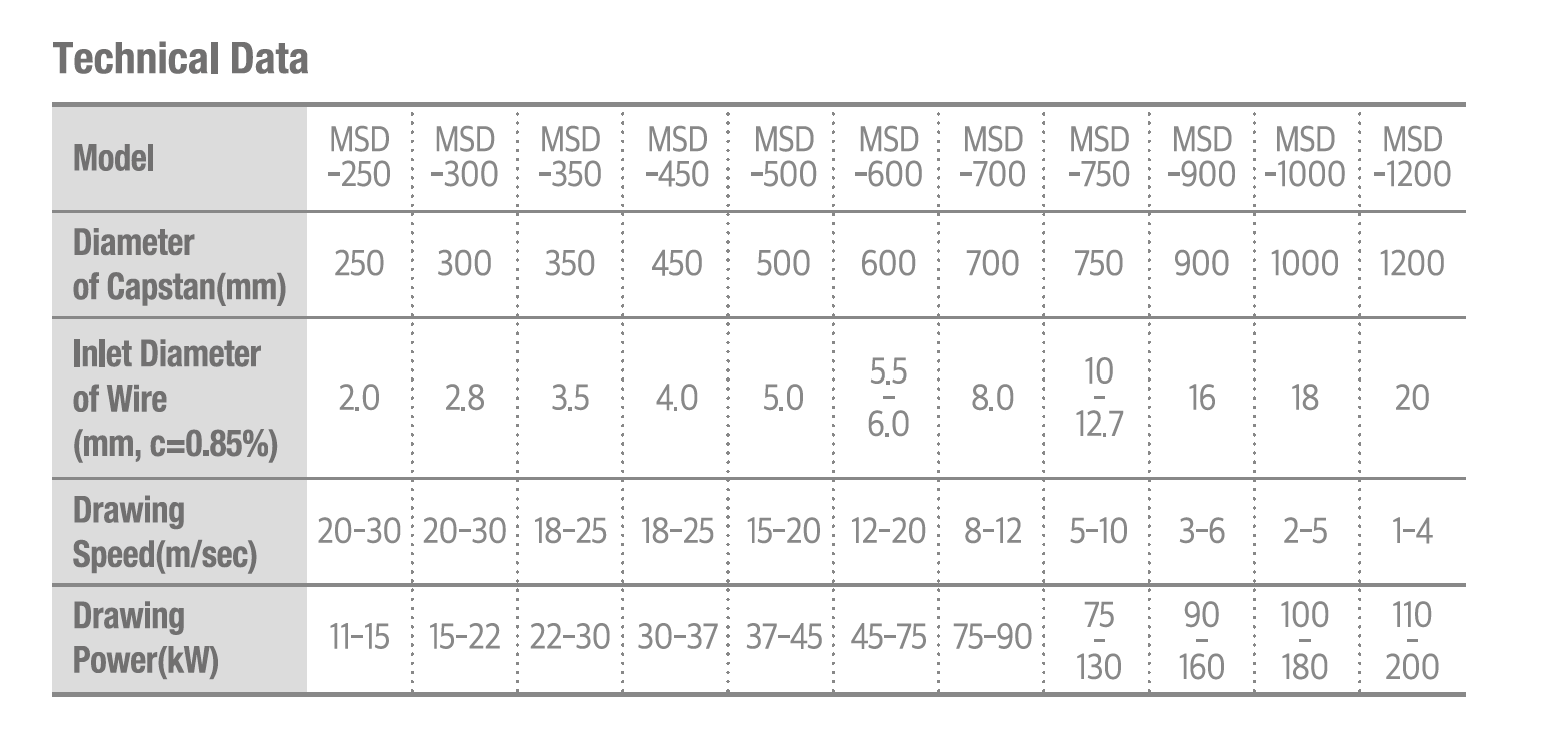

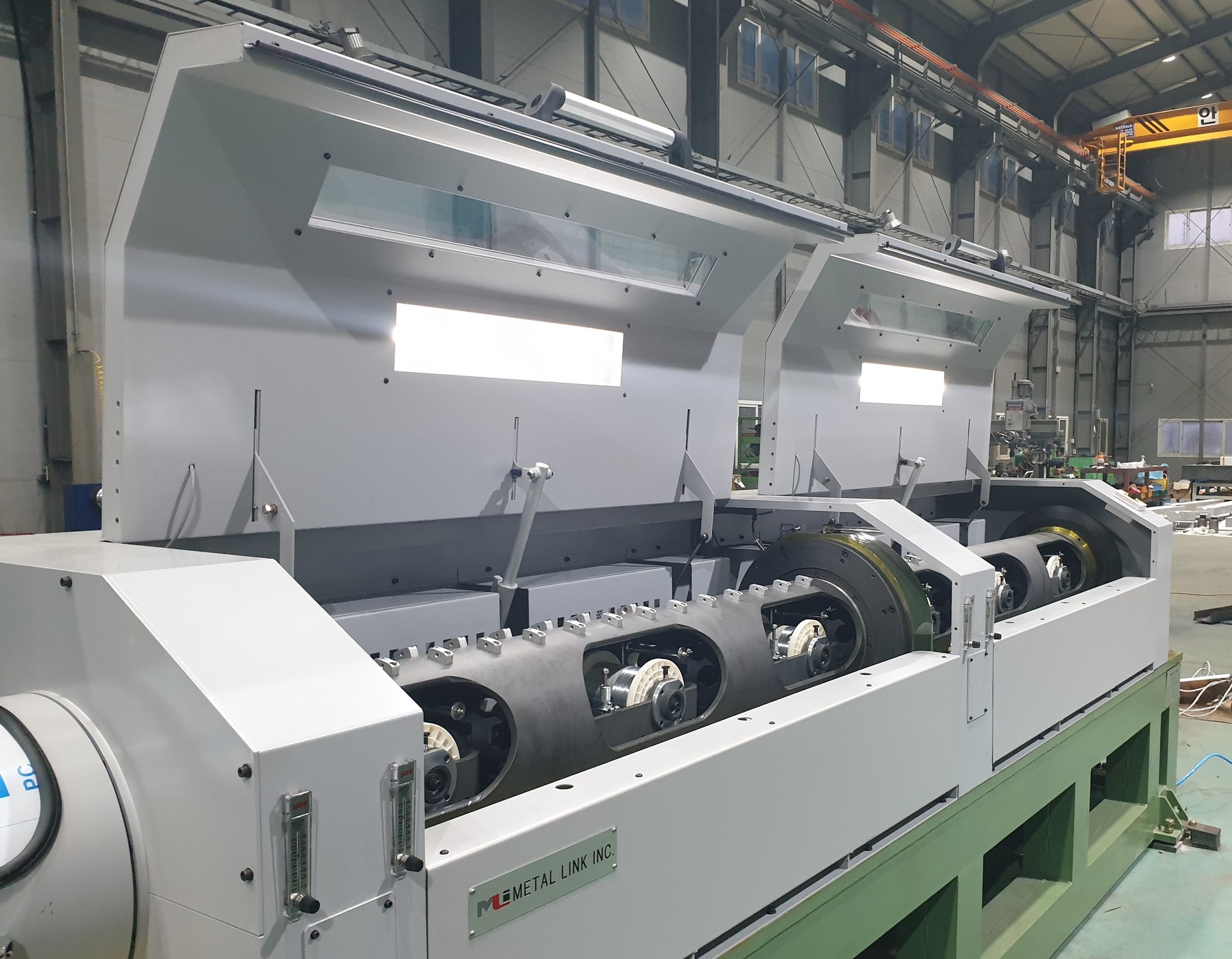

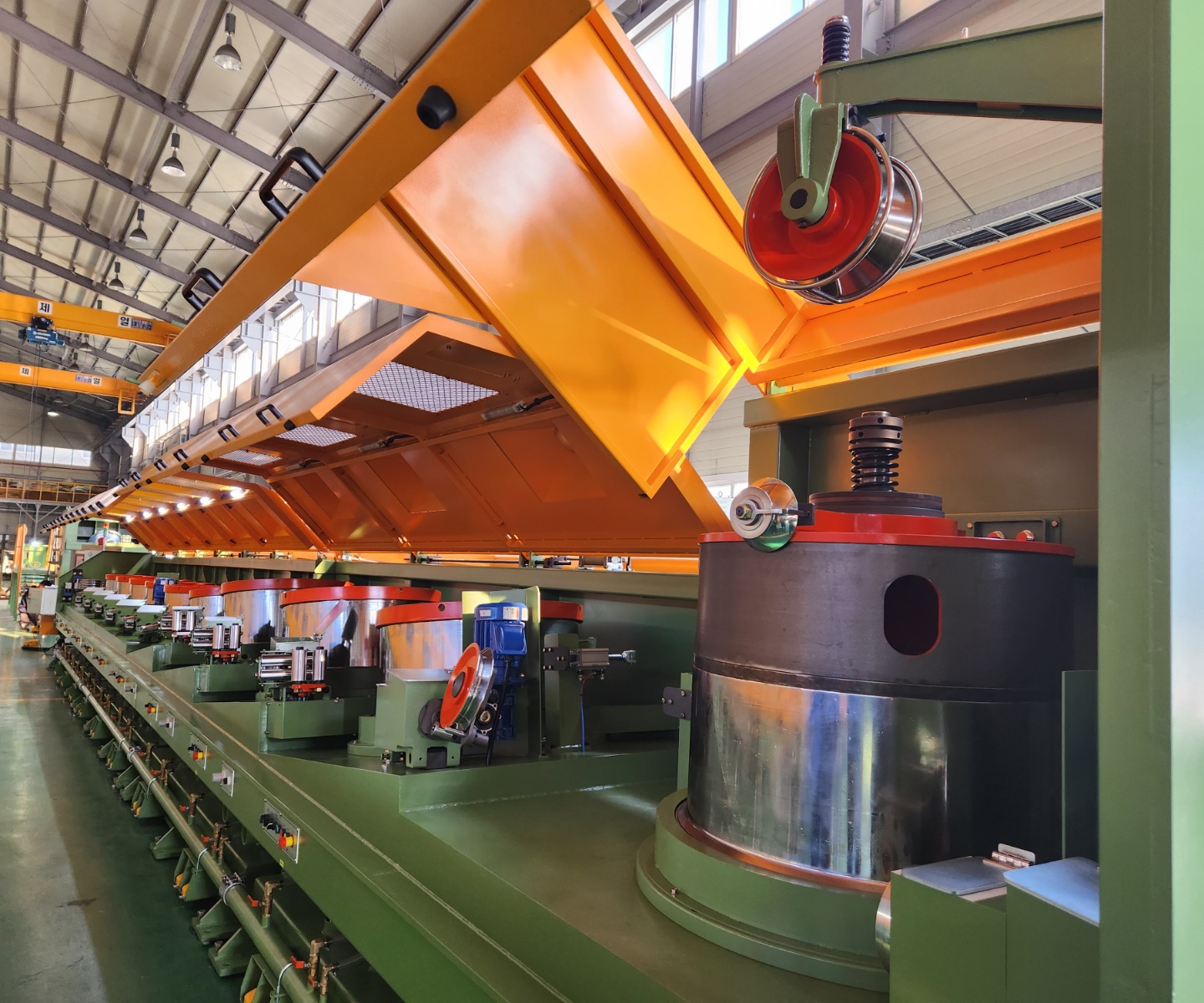

This type of machine is not only widely used for Drawing Copper Wire,
Aluminum Wire, and various kinds of Non-ferrous Alloy Wire, but also for Low & High Carbon Steel Wire, Stainless steel wire, and Special Alloy Wire that require wet lubrication.
See why people love Metal Link Inc..
For customers looking to select an excellent stranding machine for their specific manufacturing space and facilities, the following are the most critical considerations:
Firstly, production capacity based on the allocated budget is crucial. To assess this, the revolutions per minute (rpm) of the wire rope corresponding to the wire diameter is important, as wire diameters for stranding machines can vary widely (from below 1mm to 10mm). Machine specifications range from 100 to 1200 rpm, so purchasing a machine with twice the revolutions per minute can double productivity per unit time, leading to higher sales and better production efficiency within the same floor space.
Secondly, maintenance and quality are essential. Inside the bobbin of the stranding machine, strands with uniform tension are twisted together. As the winding volume of the brake wheel, which holds the strands, changes, tension is automatically adjusted by friction through the brake wheel and chain. This can lead to imbalances and non-uniform defects due to wear and vibration on the bearing structure that bears the force.
Therefore, special designs such as specialized materials and lubricant circulation systems to control temperature from frictional heat in the bearings are necessary. Metal Link has been recognized for its engineering design capabilities that ensure stability and precision by European and American customers through years of process operation and design experience.
Additionally, the level of automation through sensors, control devices to manage risks in the manufacturing environment, and the unique process and material technology of the stranding machine are very important.
Furthermore, compatibility of replacement parts in case of failures or anomalies in the stranding machine operating environment is also important.
Choosing a Metal Link stranding machine optimized for these purchasing points will allow buyers to select the right machine for their specific requirements, improve productivity, and reduce unit production costs.
A Comprehensive Buyer's Guide to Wire Stranding Machines
Wire ropes, frequently used in ships, machinery, aircraft, cranes, elevators, suspension bridges, and cable cars, are made by twisting a single wire (called a strand) and then twisting multiple strands together again. However, in stranding machines, also known as bunching machines, designed for this purpose, multiple strands must be twisted with uniform tension within the bobbin to create a uniform and strong wire rope.
Various stranding machines exist worldwide, and technological innovations are constantly emerging. In the manufacturing world, where producing stronger and higher-tension wires is crucial, efficiency and precision are vital for maintaining competitiveness. One of the essential pieces of equipment revolutionizing cable production processes is the wire stranding machine.
Wire stranding is a specialized process that uses machines to twist multiple wires or cables together to form a uniform cable structure. This process is crucial for enhancing the strength, flexibility, and overall performance of cables.
Wire stranding machines are widely used in industries such as telecommunications, automotive, electrical, and construction, serving as critical infrastructure for supporting structures and bearing loads. Whether it's wire ropes, data cables, power cables, or specialized cables, they are absolutely essential for ensuring stability and productivity across various industries.
@Copyright 2022. All Right Reserved. Hosted by Imweb
#306, Metrokhan, 239, Pyeongchon-daero, Dongan-gu, Anyang-si, Gyeonggi-do, Korea(ZIP 14047)
+82 31-381-0414, machinery@metallink.co.kr
@Copyright 2025 All Right Reserved. Hosted by Imweb

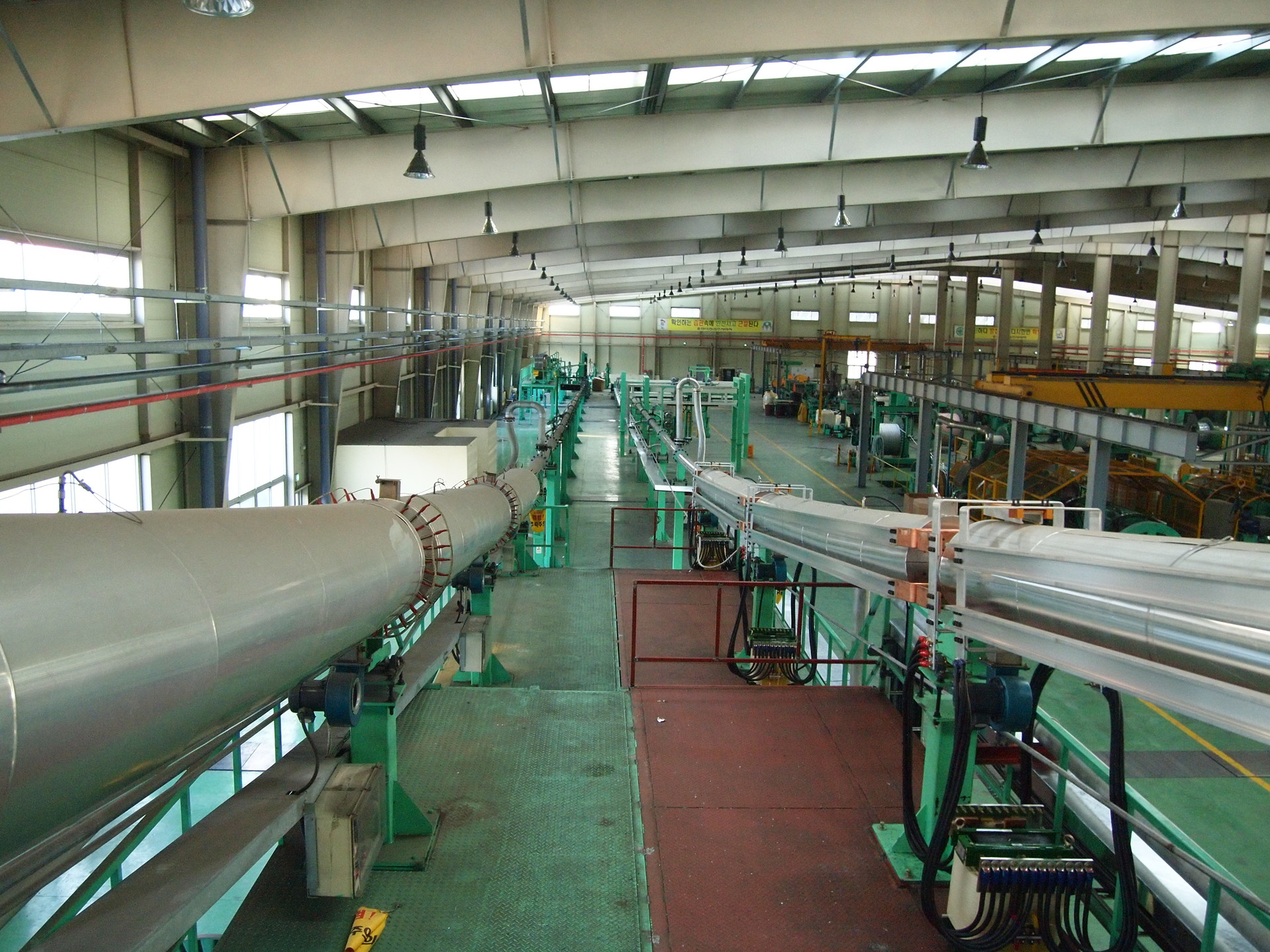

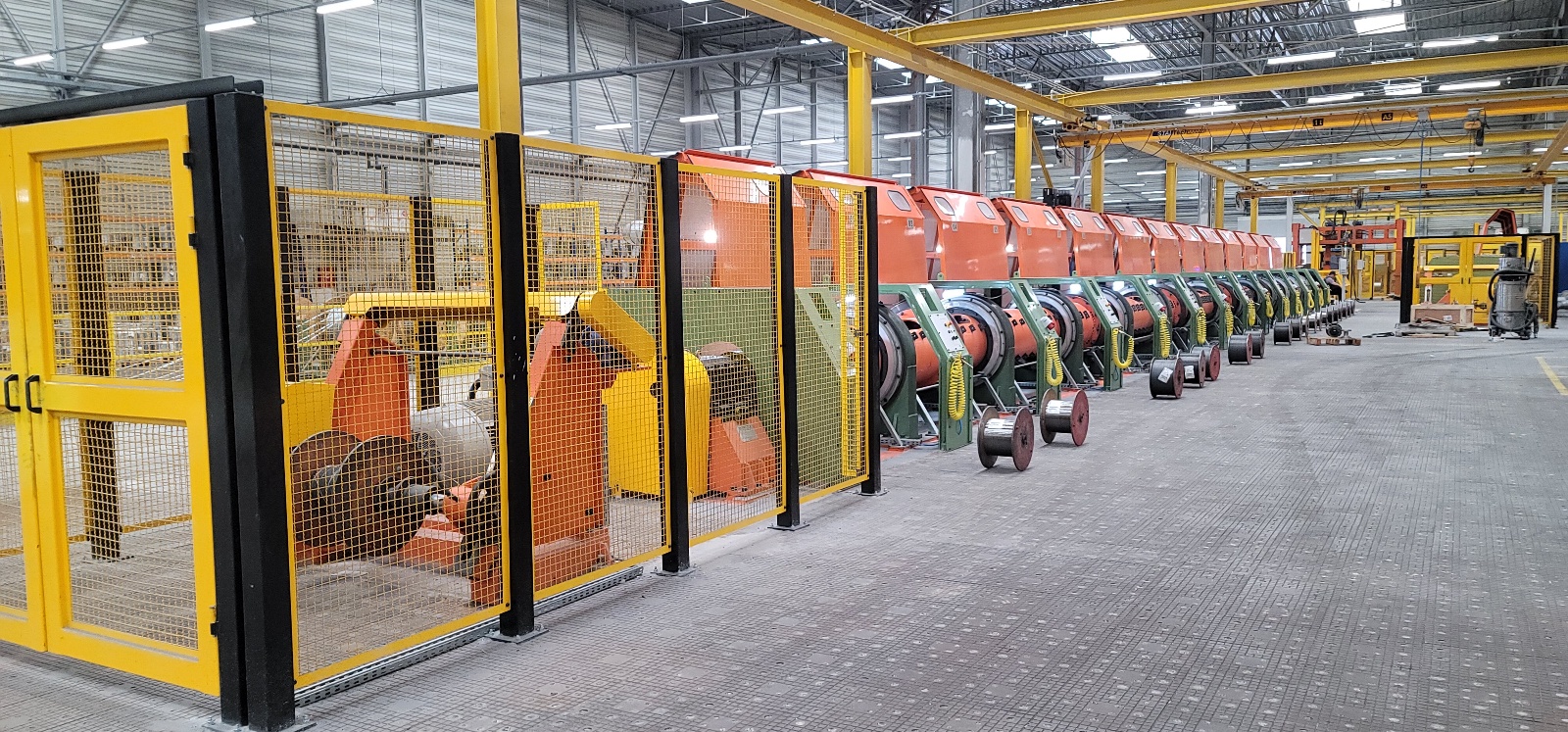

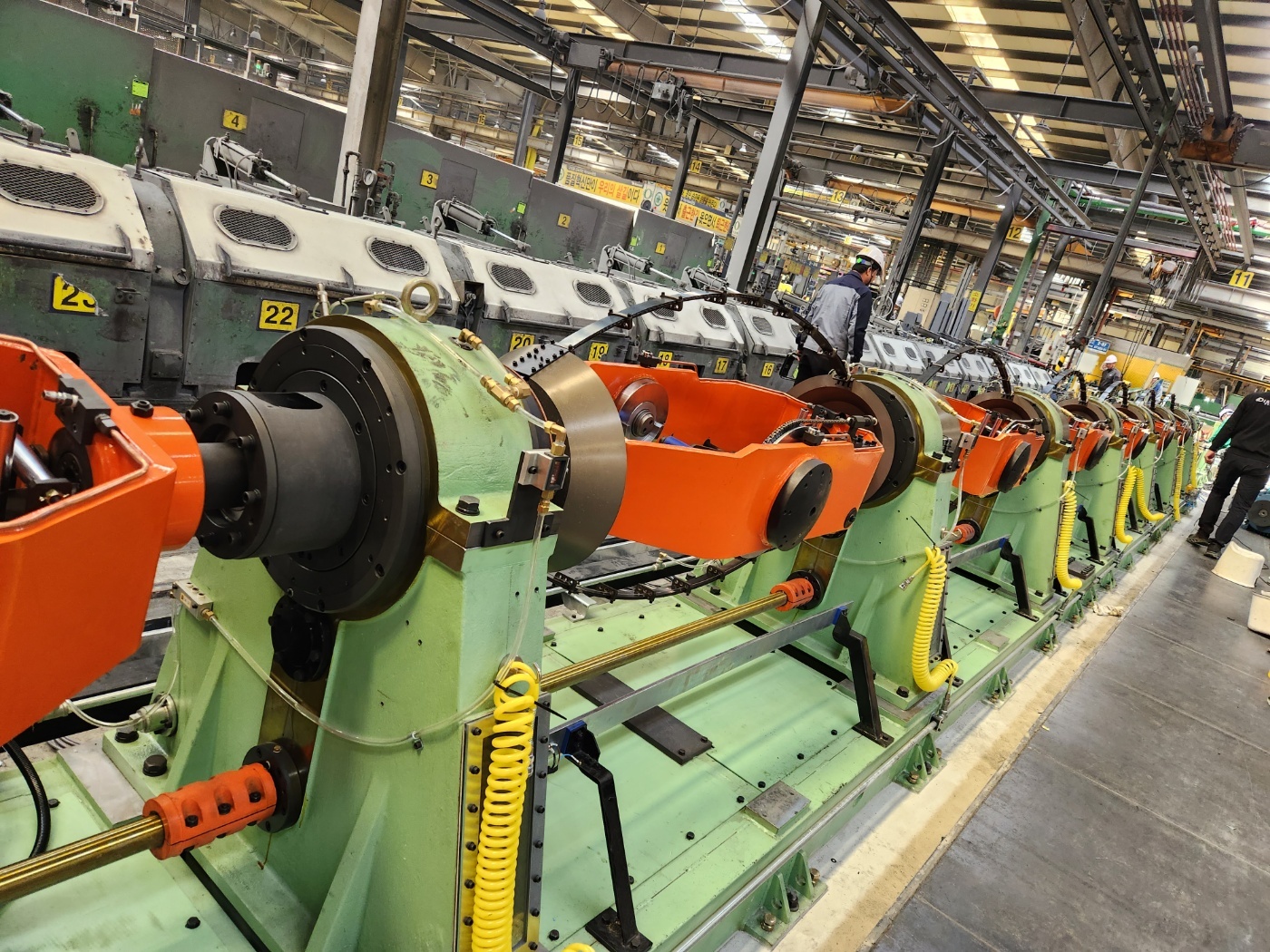

On-site installation of manufactured equipment
